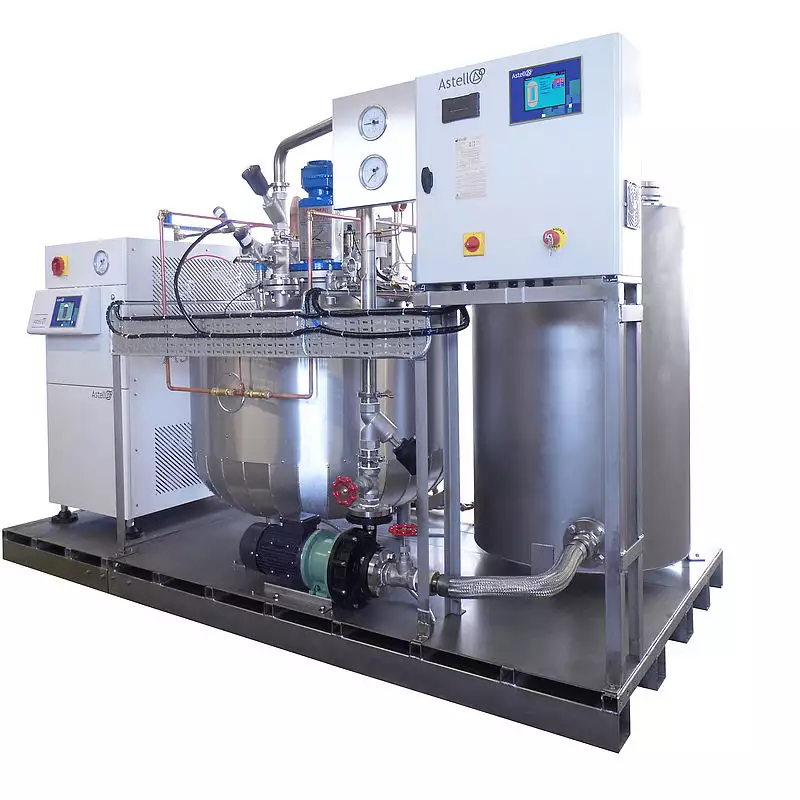

The Astell Batch Effluent Decontamination System

The Batch Effluent Decontamination System typically features a sterilizing tank and one or more holding tanks, although a single tank solution is available by request.

Astell manufactures a wide range of aqueous liquid Effluent Decontamination Systems (EDS) to service BSL-3 category facilities. EDS are particularly suited to enclosed containment or high risk research laboratories dealing with dangerous biological agents. As no two EDS projects are likely to be the same, Astell Scientific offers comprehensive advice and project management to guide you through the consultancy stage. All units are built to order and as such are highly configurable.

View full EDS range


One of the most commonly used methods, the AstellBio batch EDS system consists of two or more tanks, working on a run-standby system. When the first tank has reached a preset level, sterilization will begin and the second tank will switch to collecting any further waste. Upon sterilization completion, the first tank is emptied and will sit idle until tank two is full and begins sterilization. In this way, collection of effluent is not delayed whilst sterilization is being performed in one of the tanks.

Effluent types vary for each project, but typically treatable effluent sources will include:

  • Tap water from sinks and wash basins
  • Water from washroom facilities within a containment area
  • Sanitary installations such as toilets
  • Water from showers and other cleaning facilities in the containment area
  • Any exhaust/water from sterilizers used within the Category 3 area

Please Contact us to discuss your requirements and specification.

Model: EDS350 (350 litre sterilization tank)

Model: EDS500 (500 litre sterilization tank)

Model: EDS750 (750 litre sterilization tank)

Model: EDS1000 (1000 litre sterilization tank)

Model: EDS1500 (1500 litre sterilization tank)

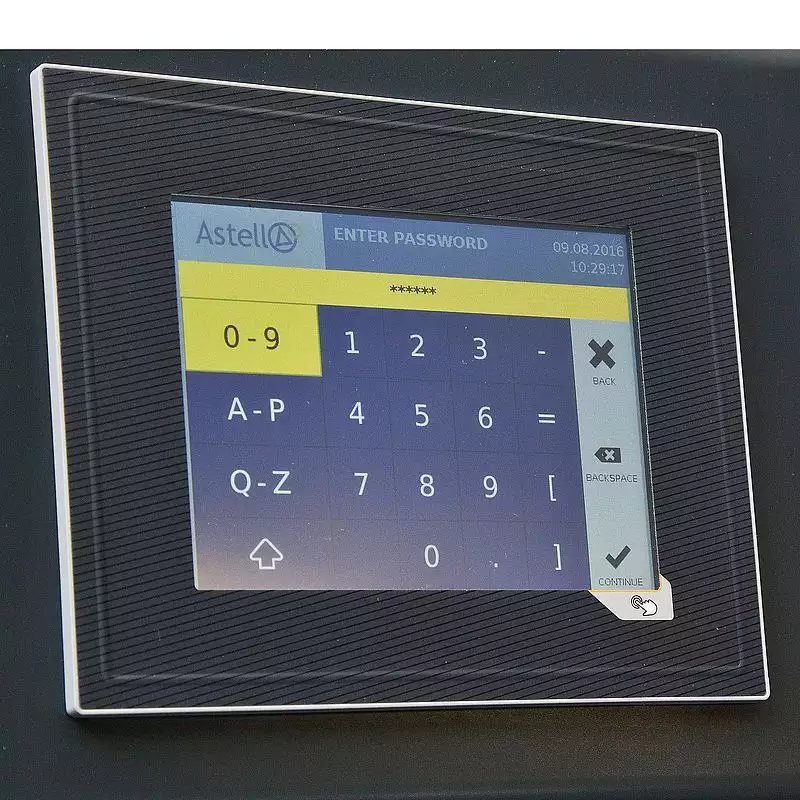

  • A fully programmable Colour Touch Screen controller
  • External pressure guage
  • Over Temperature Protection
  • Pump Status/Running/Tripped
  • Over Temperature/Over Pressure cut out
  • Safety valve test and emergency stop button
  • The password protected control system allows instant access, including manual control and full override
  • Full Range of Options & Accessories
